Protection for Interface Cards - USB Isolator

/

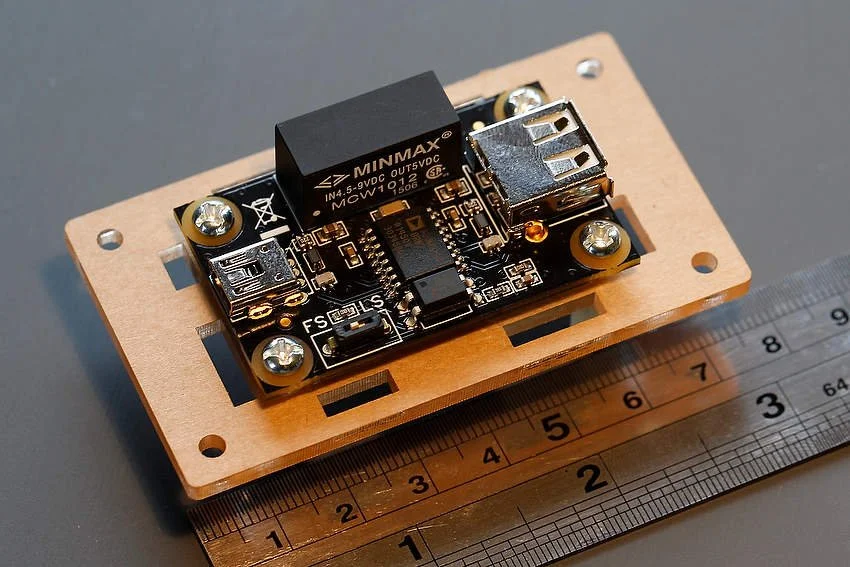

Phidget 3060 USB Isolator mounted on acrylic base

In the first of two previous posts we discussed surge protectors and the need for a protector to secure your simulator system from unwanted power surges.  The second post addressed circuit breakers in more detail and examined the different types of breakers that can be used.  In this final post I will discuss the use of an isolator to protect both your computer and any USB connected interface cards.

Multiple Phidget Card Failure

Recently I had to replace several Phidget interface cards.  The cards failed following failure of the internal power supply on my server computer.  The reason for the power supply failure is unknown, however for whatever reason a surge traveled through the USB port to the SMART module irreparably damaging two Phidget 0/16/16 cards and two Phidget 1066 motor controllers.

I contacted Phidgets in Canada who were very helpful in diagnosing the reason for the card failure.  Apparently it is not unheard of for powered Phidget cards to cease working following the failure of a computer power supply that Phidget cards are attached.

Potential Problem

The discussion with the technician highlighted a potential problem that Phidget cards are susceptible to.

When the internal computer power supply (CPS) fails the circuits are no longer fully operational which may cause unregulated power to briefly travel the shortest route to leave the system.  PCI cards and USB ports are for the most part totally unprotected and act as a first port of call for any unwanted transient power.  The power then travels through the connected USB cable to whatever is attached.  Although the surge (I will call it a surge) may only be a millisecond, it is enough to fatally damage or shorten the life of an attached interface card.

Bear in mind that not every instance of a power supply failure will result in a surge; it depends on how the power supply failed.  In my case, when the power supply failed 5 volts continued to be distributed.  However, I believe the 5 volts was not clean power meaning that the voltage fluctuated.

The technician commented that it is relatively uncommon for the event described above to occur.  He suggested that a far more common issue is that, following the failure of a powered Phidget card, the unregulated power travels to the computer via the connected USB cable (the opposite direction to what happened in my situation).  In these circumstances, the USB port, PCI card, internal computer power supply, or worse still – the computer’s motherboard can be destroyed.

For a more detailed explanation with examples, I refer you to the Phidget website.

Phidget 3060 isolator – the size of a credit card, the isolator can provide protection for both the computer and the interface cards that are connected to it.  This isolator is installed into the SMART module and provides protection for the two 0/16/16 cards and two 1066 motor controllers

The Solution

Fortunately there is an easy solution to this potential problem: Phidgets 3060 USB isolator.

The isolator is connected between the USB port and the interface cards.  In this way the cards are protected from the computer and the computer is protected from the cards, wiring and external power supplies used to power the cards.

The 3060 isolator installed into the Throttle Interface Module (TIM).  The isolator has been installed into an acrylic casing.  Although the casing is by no means necessary, it ensures that the isolator card does not become contaminated by dust.  The blue-coloured plastic band is temporary only

The 3060 isolator is a tad smaller than the standard-sized credit card and does not require a power supply.  The isolator has two USB connections, one side has a mini and the other side a standard connection.  This enables in-line connection of the isolator between the computer’s USB port and interface card/power hub.

In addition to the protection already mentioned, the isolator also protects against possible basic wiring errors and different ground voltages.  In some circumstances the isolator can also assist to stabilise a system form untimely USB disconnects.  The isolator achieves this by maintaining the correct voltage.

The interface cards used in the simulator have been mounted in standalone interface modules that in turn connect via USB to the server computer.  To protect the contents of each module, a 3060 isolator has been installed into each interface module.

Computer Power Supplies (CPS)

Although this problem was easily solved by purchasing replacement interface cards and installing isolators, it should not have occurred in the first place and it brings into question the reliability and quality of computer power supplies.

The choice of a CPS is often by chance, being the unit supplied with the computer (probably a inexpensive Chinese model).  However, CPS’s are not identical and you get what you pay for.

Many manufactures claim a specific output/voltage/wattage from their power supplies, however only a few manufactures check and guarantee these outputs.  The last thing you want is a power supply that has fluctuating voltage or a unit that is rated a particular output but does not meet this requirement.

The CPS installed in the server computer was not a quality item (it came with the computer and was not upgraded despite the remainder of the computer being re-built to flight simulator specifications).  For a few months I had noted that the CPS appeared to be running quite warm.  In hindsight, I should have realized the tell-tail symptoms of an impending problem.

The failed CPS has been replaced with a Corsair RM750x Power Supply.  This particular model is used when tight voltage control is needed.

Other benefits of using a Corsair CPS is that the capacitors are Japanese made and provide consistent and reliable output.  Furthermore, Corsair bench check every unit to ensure that they meet the outputs published.

Final Call

It is your call whether the expenditure and use of a USB isolator is warranted.  Certainly replacing Phidget cards can be expensive, not too mention the time required to install and rewire.  The isolator should be viewed as a type of insurance policy  - a 'just in case' option.

Further Information

The isolator is designed by Phidgets primarily to operate with powered Phidget cards.   The interface modules I use have Phidget, PoKeys and Leo Bodnar cards installed and connecting an isolator did not cause any issues with the operation of these cards.

I do not know if the isolator will cause problems with other USB standalone modules.

This post is but a primer.  For additional information, refer to the Phidgets website.  Note I am not affiliated with Phidgets in anyway.

Glossary

  • CPS – Computer Power Supply.

  • PCI Card – Computer bus for connecting various hardware devices.



UPDATE 2016-01-19 08:25 by FLAPS 2 APPROACH: I have been contacted by another flight simulator builder who has stated that he used a Phidgets isolator and had problems with Open Cockpit modules disconnecting.  He decided that then isolator caused more problems that what it was worth (USB disconnects).

Although I cannot comment on his situation, the isolator is primarily designed to be used with Phidget cards that are powered, not non Phidget cards or un-powered cards.

New Interface Modules

/

My friend and I have not been sitting idle.  Part of the upgrade to the simulator has been additional interface modules.

In early 2014, an Interface Master Module (IMM) was constructed to trial the modular concept.  This module housed most of the interface cards and relays that, at the time, were used in the simulator.  This trail was successful.  The single trial IMM has now been discarded and has been replaced with the:

Information concerning each of these modules, including an introduction to the modular concept, can be found in a new section named Interface Modules.  Interface Modules can be assessed from the main menu tabs located at the top of each website page (the brown banner).

It has taken considerable time to design and construct, and then interface these modules to the simulator.  To some, the process may appear complex and convoluted.  However, in the long term the idea is sound and a centralized area offers considerable advantages.

I hope you enjoy reading about the new modular systems.

Using Interface Cards and Canon Plugs To Convert OEM B737 Parts

/

an example of oem wiring and a canon plug

There is little argument that real aircraft parts add a level of realism and immersion to the flight simulator experience.  Furthermore, real parts (Original Equipment Manufacture/OEM) are built to last and if converted correctly will provide many years of trouble-free operation and enjoyment.

For the uninitiated, conversion of OEM parts can appear problematic.  Where does one begin to convert an aircraft part for simulator use?

This post will attempt to explain the basics behind converting and connecting an OEM module via an interface card and Canon plug to Flight Simulator using ProSim737.   Additionally, it will introduce and provide a general overview of Phidget Manager 21 (PM-21) software.

Please note, I am not an expert on electronics.  My background is Earth Science (geology) which is far removed from electronics...  Like others, I have learnt how things are done by 'trial and error' and listening to those more knowledgeable than myself in this field.

OEM Parts - Modules and Panels

The first thing you will notice about an OEM part (module/panel) is the build, feel and appearance is much better than a reproduction part.  It is at this stage you will be thinking ‘I don’t really want to destroy the part by opening it and rewiring everything’.  The good news is that, while some parts certainly do need rewiring, many do not.

Fortunately, the process to convert many OEM components is similar.  Granted the pin-outs and wiring are different between units, but the methodology used to determine the pin-outs is identical.  It’s a matter of replicating your methodology with each part.

Canon Plugs - The Interface to a Wiring Maze

If you look inside a OEM panel you will be surprised at the multitude of multicolored wires that connect to various relays, switches, solenoids and circuitry. Moreover you will be very impressed with the neatness and integrity of the wiring harness and as mentioned earlier, you will be loath to destroy the craftsmanship employed.

Twin Canon plugs belonging to a OEM 737 AFDS. The plug on the right is OEM while the left is bespoke

In the real aircraft, a module is connected to the aircraft’s wiring harness by a Canon plug which is a plug with any number of pins; each pin corresponding to particular function.  A Canon plug can be locked in place with the clockwise turn of the locking cap providing a solid yet removeable connection.

The benefit of Canon plugs, amongst others, is that they provide an easy and solid connection to the module’s internal wiring.    Many individuals remove these plugs, pull apart the module and gut the wiring starting afresh.  While this certainly is possible, why do it when all that is required is to ascertain the pin-outs of the Canon plug to connect to the wiring inside the module.  I doubt many of us, with the exception of a professional electrical craftsman, have the ability to duplicate the quality of workmanship seen in an OEM module.

Unfortunately, it is common place to find modules that are sold without the corresponding male or female side of the plug.  In this case the correct male or female plug must be bought separately, an existing plug converted, or a new plug fabricated.  If you have the opportunity to use a Canon plug, always try to use it before cutting the plug from the unit.

Determining Pin outs - The Value of a Good Multimeter

The crux of converting an OEM module is to understand the functionality of the module in question.  The best place to begin learning how a module operates is the latest FCOM.  OEM modules are made for real aircraft and as such often have functions that may not be incorporated into flight simulator.  After arming yourself with 'operator knowledge', the next step is to decipher the often cryptic maze of pins in the Canon plug.  Once this is understood, the conversion is relatively straightforward with the addition of an interface card and power supply (if needed).

oem Canon plugs showing the snake-like pattern of pin location and numbering.  This module uses two Canon plugs marked J1 and J2

The pins of a Canon plug will provide at the minimum: functionality for the part, an earth (common) and a pin (s) dedicated to power.  Traditionally, all modules have used incandescent bulbs for backlighting which is powered by 5 Volts.  Depending upon functionality, some modules require different voltages with 28 Volts being the norm.

It’s important to be able to decipher which pin does what to ensure correct functionality within Flight Simulator.  This involves logical thinking and little bit of trial and error.  It is a high probability that not all the pins in the Canon plug will be used or needed in Flight Simulator.  Remember, that in a real aircraft there are multiple systems and some wires and pins will connect with these 'unneeded' systems.

If you carefully study the pin layout in a Canon plug you will note it is not random – there is a definite order in how the pins are presented.  You will note that in all probability some pins are numbered, but not all.  The numbers move sequentially so the pin beside the pin marked ‘5’ will either be pin ‘4’or pin ‘3’.  The snake-like pattern printed on the inside of the plug is there for good reason - it acts as map guiding you from the highest number to the lowest.

By far the easiest way to determine pin-outs for functionality and power, if you do not have a wiring schematic, is to use a multimeter set to continuity mode (beep mode).

Phidget card 0/16/16 (one of several types).  Phidgets are a proven way to convert many OEM components; the 0/0/4, 0/16/16, 1066 analogue and servo cards are mainstays.

Which Interface Card

Most parts require an interface card of some type to allow communication between the part and flight simulator.  There are several cards that, depending upon the part’s functionality, can be used: Leo Bodnar joystick cards and PoKeys cards are commonly used while Phidget cards have been the mainstay for quite a few years.  Flight Deck Solutions also produce some excellent system cards while Polulu is another manufacturer.

Which interface card is used will depend on the functionality of the module.  A simple on/off switch or a rotary knob can be interfaced using a PoKeys, Leo Bodnar Joystick or another similar 'button-type' card.  If you have a lever that needs calibration then a potentiometer will be needed.  The Leo Bodnar card is an excellent choice and will automatically register the potentiometer’s movement as an axis when the card is activated in Windows.  A light indication (korry), or a more complicated module may require a card such as Phidget 0/16/16 or 0/0/4 card.  Throttle automation and motor activation will need additional cards such as a Phidget Advanced Servo card or Polulu card.

Phidget Cards

Phidget cards, or Phidgets, have been around for a considerable time and have been the mainstay for enthusiasts wishing to control robots, cars, airplanes and the like.  Phidgets produce several cards; however, the core cards used in flight simulation are the Phidget advanced servo cards, 0/16/16, 0/0/8 and 0/0/4 cards.  To read more about Phidget cards, navigate to the the Phidget website and enter the card type into the search bar.

What Does the Interface Card Do?

The interface card is placed between the computer and the OEM module and the wires from the Canon plug are fed directly to the card (power wires usually do not connect with the card).  The card provides you with three things: an input, an output and a USB connection to the computer (or a powered hub that is then connected to the computer). Once connected, the card acts as an interface which converts an inbound analogue signal (For example, the upwards or downwards ‘throw’ of a switch) to an outgoing digital signal. For every analogue input there will be a corresponding digital output.

An interface card requires software/logic which either comes with the card (embedded) or is downloaded from the developer’s website.  Some cards utilize Windows and the process of plugging the card into the computer will initialize the card allowing the embedded software of the card to be viewed from in Windows.  The software is found by opening the  joystick controllers menu - type ‘joy’ into the search tab of the computer to be directed to this joystick wizard.

An example of a card that has embedded software and comes pre-calibrated is the Leo Bodnar Joystick card.  The 'Leo' card uses the joystick controller menu in Windows to allow access to the card logic. Other cards such as Polulu require calibration and programming in their own software and without calibration and programming will appear unresponsive when first connected to a computer.  Phidget cards utilize their own software (Phidget Manager 21) downloadable from the Phidgets website.

If using multiple cards of the same make and type, each card will be assigned a dedicated number allowing you to know which card controls what module.

To connect a function (for example a switch) to the Interface card you run the wire from the Canon plug/terminal to the input terminal on the card.  This process is replicated for each function of the module, bearing in mind that some functions on the Captain and First Officer side may be duplicated.  If this is the case, the wires from the module are connected into the same input terminal on the card.

If power is required to operate the module's function or for backlighting of the panel, then a wire from the power supply will need to be connected to the correct pin in the Canon plug of the OEM module.  The usual method is to connect  power from the power supply to a solid high amperage terminal block and then to the OEM module.  Power is not normally connected directly to an interface card, unless the card has this particular capability.

The connection of the wires to the card and connection of the card to the computer provides the link to enable the various inputs and outputs to be read either by standalone software, Windows, or directly in ProSim737.

Phidget Manager 21 User Interface.  Each serial number is specific to an individual card that is allocated when configuring the output in ProSim737

Phidget Manager 21 (PM-21) - The Bare-shell Basics

PM-21 is the replacement for the older styled Phidget’s Library.

Phidget Manager 21 (PM-21) software when installed to your computer generates a list indicating which Phidget cards are currently connected to the computer.  Each connected Phidget card can be opened individually from this list. Selecting a card will open a sub-window providing set-up information and the inputs and outputs for the selected Phidget card.

There is also a testing area to check the functionality (inputs & outputs) of the module in addition to several other specialist features.

It is a little difficult to explain, but when this screen is open you can as in the above example, manipulate the switch up or downwards and a corresponding tick (check mark) will be seen in the input.  PM-21 will then assign this item (switch) to a dedicated output number specific only to this card.  The output number is what is used when configuring the device in ProSim737.

If converting an indicator (light) or mechanically-produced sound, the software can be used to determine if the indicator has been wired correctly.  Selecting the input section and placing a tick (check) into the appropriate box will cause the indicator to illuminate or the sound to become audible.

PM-21 UI for Phidget 0/16/16 card that controls fire suppression panel.  Moving a switch on the hardware will show a corresponding tick in the input section.  The output section can be used to test the hardware to ensure the function is working correctly

It is important to remember that the  Phidgets 21 Manager can only read installed cards if ProSim737 is closed (as of ProSim737 Version 1:34).  If the ProSim737 main menu is open, PM-21 cannot obtain the necessary information to read the card correctly.

Configuring the Interface Card in ProSim737

Once the wires from the module have been connected to the inputs of the interface card and inspected (in PM-21, Windows, or whatever software) for correct connection, the output from the interface card must be configured in ProSim737.

Before proceeding further, it is important to determine if the cards you are using are being read by ProSim737.  Open the main ProSim737 menu and select configuration/drivers and confirm that each box corresponding to the card type installed has been checked/ticked.  After this has been verified, the main ProSim737 screen will indicate which cards ProSim737 is reading.  This is a handy way to know if your interface cards are connecting correctly to your computer and are being correctly read by ProSim737.

The process to configure an output is addressed in the ProSim737 manual.  Therefore, the following is an overview.

To configure an output:

  1. Select the appropriate tab in the configuration menu (configuration/switches, configuration/indicators, etc.) that corresponds to the function of the module (i.e. light test switch)

  2. Scroll down through the list to find the correct function (i.e. light test switch)

  3.  Move the switch on the module noting the input/output variables at the top of the computer screen

  4. From the drop down box beside the function, select the correct interface card type and serial number. (Another method is to press A located beside the function.  This will automatically select the last known position of the switch and automatically assign it).

  5. Beside the interface card drop down menu, there is another drop down menu.  Select this menu and select the correct digital output (variable shown on the screen when the switch was moved)

A similar method can be used for indicators.

Once this is done, close and reopen the ProSim737 main menu.  The function should now be registered in ProSim737. Although this process sounds rather convoluted, once done a few times it becomes second nature.

Conclusion

This is a very simple introduction to the conversion of OEM parts using the Canon plug system and the use of interface cards, in particular Phidget cards and the use of Phidget Manager 21 software.

In general, PoKeys, Leo Bodnar joystick cards and Phidget cards (type 0/16/16 and 0/0/4) will cover the interfacing of many functions used in real aircraft modules.  However, not every part is as easy as a switch to convert.  Depending upon the complexity of the module, there may be multiple pin outs that need to be deciphered, additional logic needed, and the requirement to use multiple or single interface and/or relay cards before the part will successfully connect with Flight Simulator.

Acronyms and Glossary

  • Canon Plug – A plug made by Canon that allows a secure link between wiring systems.  The plug incorporates any number of pins, each pin corresponding to a particular functionality.  Many Boeing modules incorporate one, two, three or four Canon plugs depending upon the degree of sophistication in the module.

  • Module or Panel – Boeing parts are often called modules or panels (I use both words interchangeably)

  • OEM – Original Aircraft Manufacture (real aviation part).

  • Phidget Manager 21 (PM-21) – Software supplied by Phidgets that provides the logic behind the various Phidget interface cards.

Powering, Wiring and Configuring the 737-300 Throttle Quadrant

/

oem 737-300 throttle quadrant. installation of phidget 1064 interface card is to the forward bulkhead

The picture shows the front of the throttle quadrant with the attached 0064 and 0066 phidget cards and the BUO 836X Leo Bodnar card.  I thought this to be the best location for attaching the cards rather than having them either sit loose or be mounted on a separate board.  The wiring and cards will not be visible when the quadrant is sealed against the front of the main instrument panel (MIP). However, if servicing is required, access to the cards and wiring can easily be achieved via the front of the MIP.

The Phidget cards are required to provide functionality to the trim indicator, motorizing of the trim wheels (via a servo motor), and to allow the deployment of the auto speed brake.

Different Voltages Required

The throttle quadrant requires different voltages to operate correctly.  Apart from the obvious USB power through the USB cable connected to the cards, external power is supplied via a standard style computer power source, rated to 400 watts.  To reduce the main power, which is 240 volts in Australia, to that required by the phidget cards and integrated back lighting (IBL); I installed a bench top power board kit.  This small kit comes unassembled in a box direct from China.  Assembling the kit and card isn’t difficult but it does taken considerable time to solder all the terminals in place.  The bench top kit allows the power from the computer power source box  to be reduced to: 3.3 V, 5 V, +12 V and -12V.  Each power selection is protected by a 5 amp in-line fuse.  In an attempt to try and maintain neatness I mounted this card directly to the power source box.

Functions on the throttle quadrant that require power are:

  • Integrated back lighting (IBL – aircraft bulbs) – 5 volts

  • Main parking brake light – 12 volts

  • Fire suppression module backlights and handle lights – 5 volts

  • Speed brake servo.  Phidget controlled servo motor - 5 volts & 12 volts

  • Trim wheels (spin when electric trim is activated from yoke) Phidget controlled servo motor – 12 volts

  • Lighting on/off switch (TQ IBL only) – 5 volts

  • Hobbs meter (to indicate length of time TQ has been operational) – 24 volts (12V + 12V)

connecting wires to power distribution board

The other avionics that will be installed into the avionics bay are powered directly via USB (unless real aircraft modules are used)

I wasn’t exactly sure what the amperage draw was from the servo motor (that spins the trim wheels and activates the speed brake).  Therefore, to connect the external power through the bench-top power kit, I decided to use 10 amp wire. I have a sneaky suspicion that 10 amp rated wire is overkill for the task, but at least I know it won’t melt.

If you want to view more detailed images, please navigate to the image gallery and select construction

Phidget & Leo Bodnar Card Programming

power distribution board positioned above computer power supply

Most of the buttons and levers located on the throttle are assignable to standard flight simulator controls through the windows joystick controller (or Leo Bodnar card).  But, those throttle functions that are controlled by a phidget card, initially require mapping through a registered version of FSUIPC, so that they can be seen within the phidget's interface to allow assignment and configuration.  I used a FSUIPC profile to map the functions controlled by phidget cards, which were: the trim indicators, trim wheels and speed brake.

I'll be the first to admit that my knowledge of phidgets is lacking; Until recently I couldn't spell the word.  With the help of a very kind person from northern California who is exceptionally knowledgeable on phidgets my worries were soon overturned - at least for the time being.  During a two hour telephone hook-up, the correct computer drivers and phidget libraries were installed on the computer and the attached phidget cards on the throttle quadrant were programmed to the required throttle quadrant fields with various FS variances and offsets (after they were mapped in FSUIPC).

As with many software related products, there was a bit of troubleshooting and configuration that needed to be done, but nothing too drastically complicated.  It all seems quite easy when you know how.

The throttle now has full functionality with the exception of the automatic deployment of the speed brake on flare and touch down.  This requires an additional Phidget card (004 card) which has four relays that can be computer controlled.  The relay is needed to activate the squat switch to turn off the servo motor allowing the speed brake to deploy.  This additional Phidget card will be installed shortly.

It was quite amusing when we programmed the phidgets to the trim wheel movement.  I hadn't expected the movement and was leaning on the trim wheel while discussing the issue on the phone.  BANG WHIRL as the trim wheel began to spin at a high number of revolutions.  The movement and noise startled me and I almost fell from my perch!  The TQ shook madly as the trim wheel rotated (as it isn't yet screwed to a platform) - I can now understand how real world pilots spill their coffee!

Programming the Leo Bodnar card was straightforward; this card follows the standard for windows joystick controllers.  Essentially, you just follow the screen prompts and allocate button functions to whatever devices you choose.

One aspect that required careful attention is to check that the flight simulator controls are not duplicated in either the  phidgets, Leo Bodnar, yoke, or other joystick controller settings.  duplicate settings will cause problems.

Throttle Functionality Includes:

  • Independent forward and reverse thrust to engine 1/2 throttles

  • Speed brake arming

  • Speed brake flight deployment (spoilers)

  • Speed brake deployment on flare & touch down (requires another Phidget card)

  • Trim wheel rotation/revolution when trim applied

  • Trim wheel indicator functional and moving when electric trim is activated from yoke

  • Park brake and light

  • Cut off Levers (fuel idle & cutoff)

  • Flaps

  • TO/GA button functional (to go around)

  • A/T disengage functional (auto throttle)

  • All IBL backlighting functional

The stab trim switches I have had wired in such a way to stop the trim wheels from spinning.  Although the spinning trim wheels are accurate to the real aircraft, they can be annoyingly noisy, especially at night when others are trying to sleep.  To disengage the trim wheel motor from the spinning trim wheels,  I flick the stab trim switch.  To activate the them again, I reverse the process.

The horn cut out switch is currently not connected to throttle functionality, however, can be allocated to another flight simulator function if required.

Fire Suppression Panel (FSP)

A communication error with my friend, who was converting this panel to flight simulator use, means a little more work is required to add flight simulator functionality.  At the moment I have power running to the handles causing the lamps to be lit all the time, and some of the module buttons to be back lit.  To my knowledge, the handles should only light when the backlighting is switched on or when they are activated.  I still have the original Boeing circuit boards and solenoid switches, and although I haven't given the matter a lot of thought, I believe that it should be possible to connect a Phidget 004 card, which has relays, to allow activation of APU and fire handles via the original solenoid switches.  I'm not quite sure on how to activate the buttons and switches - perhaps FSUIPC offsets and phidget software.  Rome wasn't built in day, so more on this later.
